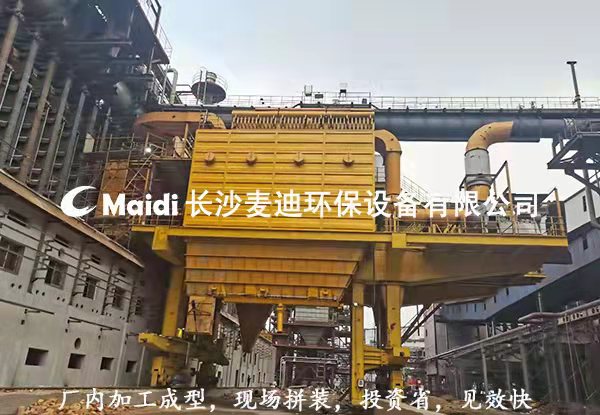

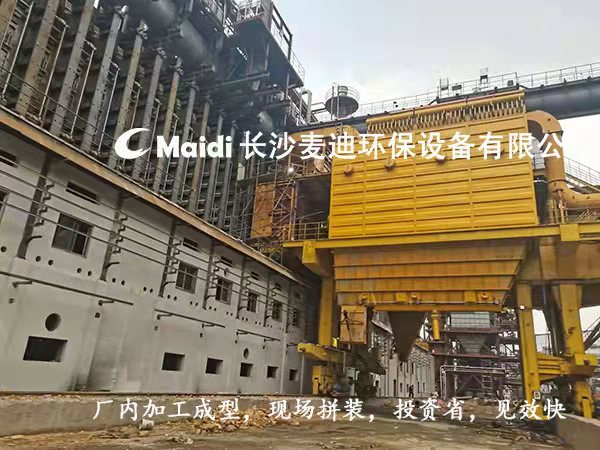

鋼廠焦化廠大型脈沖布袋除塵器現場制作完畢投運

LMCD(CDMC)系列長袋脈沖布袋式除塵器

LMCD (CDMC) Series Long-Bag Pulse Bag Pulse Filter

l   設計新穎，采用下進氣結構，較粗的高溫顆粒直接落入灰斗，有效的保護了濾袋

l   采用長濾袋，在同等處理能力時設備占地面積少，更便于老廠改造

l   采用分室離線清灰，效率高，粉塵的二次吸附少，同時有效的降低了設備能耗，濾袋與脈沖閥的疲勞程度也相應降低，成倍地提高了濾袋和閥片的壽命，大量減少了設備運行維護的費用

l   檢修換袋可在不停系統風機、系統正常運行的條件下分室進行

l   濾袋袋口采用彈簧漲緊結構，拆裝方便，具有良好的密封性

l   箱體經過氣密性設計，并以煤油撿漏，最大程度減少漏風

l   整臺設備由PLC機控制，實現自動清灰、卸灰、自動溫度控制及超溫報警

l   Hopper directly to effectively protect filter bags.

l   With long bags, equipment takes less area compared with others in the same capacity. It is especially favorable for upgrading of existing plants.

l   Off-line dust removal in separate chambers featured as follows: high efficiency: less secondary dust re-adhering: lower power consumption; extended service life of bags and valve plate due to less fatigue. in this way, expense for equipment maintenance could be greatly reduced.

l   Maintenance and replacement of bag can be separately conducted in each chamber without interrupting the whole operation system and fans.

l   Apply spring take-up at bag mouth for easy maintenance and replacement and favorable air tightness.

l   The design of shell takes air tightness into consideration and use kerosene for inspection, so as to reduce air leakage to the largest extent.

l   Equipment is controlled through PLC to realize automatic dust removal, dust discharge, temperature control and over-temperature alarming.

l   排放低于30mg/Nm3

l   濾袋平均壽命在18個月以上

l   運轉率相對主機100%

l   Emission concentration is below 30 mg/Nm3.

l   The average life service is over 18 months.

l   The operation rate of dust collector to man equipment is 100%.
